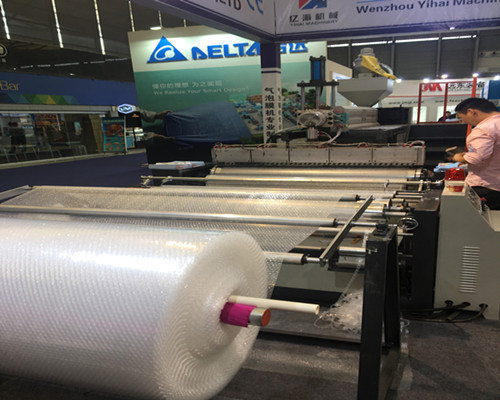

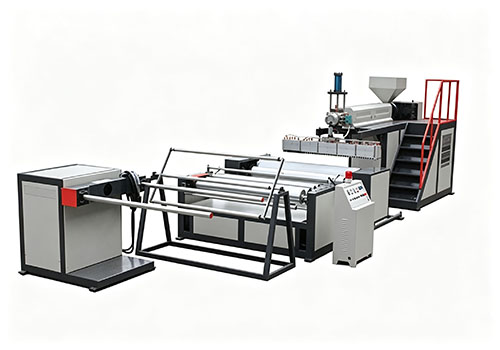

The machine can produce 2 layers of bubble film, extruder for the single screw design. The main raw materials are LDPE and LLDPE particles. Main components: hopper - extruder - die head - bubble forming die - traction roll - flattening roll - winder - control box
Optional equipment:
1.Chiller
2.Automatic Vacuum Feeder
3.Auto Changing Sieve
4.Blender
5.Scrap Reverse
6.Grinder
7.Auto Rewinder
8.In-line perforated unit
|
| ||||||
|
MODEL |
MAX.WIDTH |
DIA. SCREW |
SCREW L:D |
CAPACITY(kg/h) |
SPEED |
TOTAL POWER |
|
QHPE-1000A |
1000mm |
65 |
32：1 |
40-50 |
700-1500 |
55KW |
|
QHPE-1200A |
1200mm |
65 |
32：1 |
45-60 |
700-1500 |
58KW |
|
QHPE-1500A |
1500mm |
70 |
32：1 |
60-70 |
700-1500 |
68KW |
|
QHPE-1600A |
1600mm |
75 |
32：1 |
60-80 |
700-1500 |
72KW |
|
QHPE-1800A |
1800mm |
80 |
32：1 |
80-90 |
700-1500 |
78KW |
|
QHPE-2000A |
2000mm |
85 |
32：1 |
90-100 |
700-1300 |
100KW |
|
QHPE-2200A |
2200mm |
90 |
32：1 |
90-110 |
700-1200 |
120KW |
