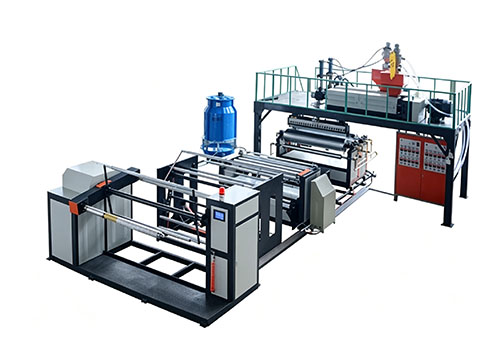

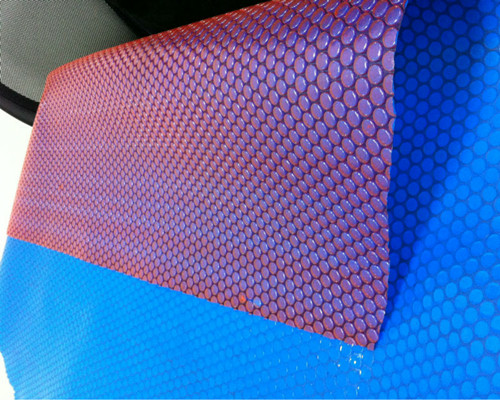

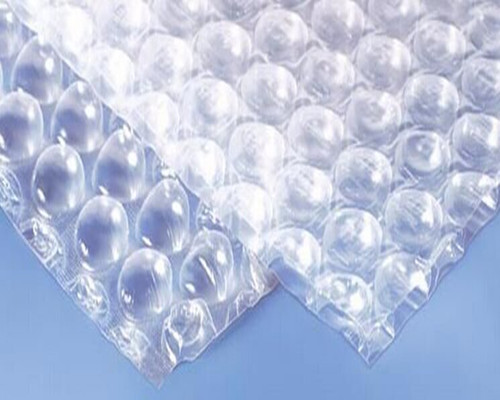

The machine can produce 2 layers of bubble film, extruder for twin screw design. The advantage of the twin screw design is that the bottom layer and bubble layer can be controlled separately, so as to achieve simple operation, fast speed, beautiful products and other characteristics.
The main raw materials are LDPE and LLDPE particles. Main components: hopper - extruder - die head - bubble forming die - traction roll - flattening roll - winder - control box
Optional equipment:
1.Chiller
2.Automatic Vacuum Feeder
3.Auto Changing Sieve
4.Blender
5.Scrap Reverse
6.Grinder
7.Auto Rewinder
8.In-line perforated unit
MODEL |
MAX.WIDTH |
DIA. SCREW |
SCREW L:D |
CAPACITY (kg/h) |
SPEED |
TOTAL POWER |
QHPE-1500 |
1500mm |
65/55 |
32：1 |
70-100 |
700-1800 |
95KW |
QHPE-1600 |
1600mm |
65/55 |
32：1 |
70-110 |
700-1800 |
98KW |
QHPE-1800 |
1800mm |
70/55 |
32：1 |
90-130 |
700-1800 |
110KW |
QHPE-2000 |
2000mm |
75/60 |
32：1 |
100-150 |
700-1500 |
130KW |
QHPE-2200 |
2200mm |
80/65 |
32：1 |
110-180 |
700-1500 |
150KW |
QHPE-2500 |
2500mm |
85/70 |
32：1 |
130-200 |
600-1300 |
160KW |
QHPE-3000 |
3000mm |
100/85 |
32：1 |
150-250 |
600-1200 |
180KW |
QHPE-3500 |
3500mm |
110/95 |
32：1 |
160-280 |
600-1200 |
200KW |
