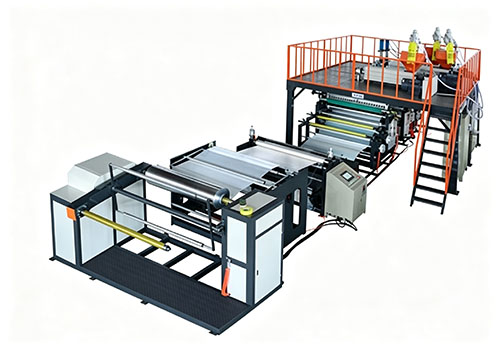

2-5Laye Air Bubble Film Machine-3Screws
The machine is suitable for LDPE and LLDPE particles
The machine can produce 2-5 layers of bubble film (film + flat film + bubble + flat film + film + film =5 layers). The extruder is made up of the main extruder and the auxiliary extruder, with a total of 3 screws.
The main machine is designed by double screw rod, which can separate control the bottom layer and bubble layer, with the advantages of simple operation, fast speed, high output, beautiful appearance, etc., it can produce bubble film compound kraft paper, pearl cotton, PET aluminized film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.
MODEL |
MAX.WIDTH |
DIA. SCREW |
SCREW L:D |
CAPACITY (kg/h) |
SPEED |
TOTAL OWER |
CONSUMPTION POWER |
QHPEG-1200B |
1200mm |
65/55/50 |
32:1 |
100-120 |
700-1800 |
110KW |
40-50KW |
QHPEG-1500B |
1500mm |
70/60/55 |
32:1 |
110-140 |
700-1800 |
120KW |
45-60KW |
QHPEG-1600B |
1600mm |
70/60/55 |
32:1 |
110-140 |
700-1800 |
135KW |
45-60KW |
QHPEG-1800B |
1800mm |
75/60/60 |
32:1 |
120-180 |
700-1800 |
158KW |
50-65KW |
QHPEG-2000B |
2000mm |
80/65/65 |
32:1 |
140-200 |
700-1500 |
188KW |
60-70KW |
QHPEG-2500B |
2500mm |
85/70/70 |
32:1 |
180-250 |
500-1200 |
230KW |
75-85KW |
QHPEG-3000B |
3000mm |
100/85/85 |
32:1 |
260-305 |
500-1200 |
250KW |
80-100KW |
QHPEG-3500B |
3500mm |
110/95/95 |
32:1 |
300-280 |
500-1000 |
270KW |
90-110KW |
