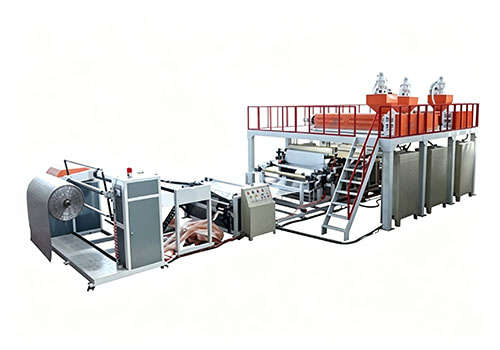

The machine is suitable for LDPE and LLDPE particles
The machine can produce 2-7 layers of bubble film (5 layers bubble film +2 layers PET aluminum film), can produce bubble film compound kraft paper, pearl cotton, PET aluminum film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.
MODEL |
MAX.WIDTH |
DIA. SCREW |
SCREW L:D |
CAPACITY (kg/h) |
SPEED |
TOTAL POWER |
CONSUMPTION POWER |
WEIGHT |
QHPEG-1000 |
1000mm |
65/50/65 |
32：1 |
90-130 |
600-1200 |
130KW |
48-58KW |
4T |
QHPEG-1200 |
1200mm |
65/50/65 |
32：1 |
90-130 |
600-1200 |
138KW |
50-65KW |
5T |
QHPEG-1500 |
1500mm |
75/55/75 |
32：1 |
130-170 |
600-1200 |
178KW |
55-75KW |
6.2T |
QHPEG-1600 |
1600mm |
75/55/75 |
32：1 |
130-170 |
600-1200 |
185KW |
55-75KW |
7T |
QHPEG-1800 |
1800mm |
80/65/80 |
32：1 |
140-200 |
600-1200 |
210KW |
75-95KW |
7.5T |
QHPEG-2000 |
2000mm |
85/65/85 |
32：1 |
150-220 |
600-1100 |
248KW |
80-110KW |
8.2T |
QHPEG-2200 |
2200mm |
90/70/90 |
32：1 |
170-240 |
500-1000 |
280KW |
100-130KW |
8.8T |
