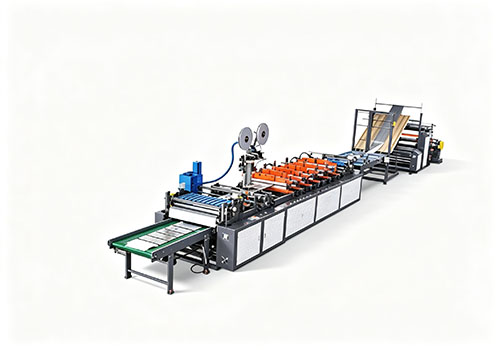

Device Description
Our bubble bag making equipment specially designed for kraft paper bubble envelop bag，And it can also make coextrusion film bubble envelope bag（the coextrusion film bubble roller should be laminated first,but for kraft paper,no need that process).
How to make the bubble bag:Firstly,The coated kraft paper and PE bubble film are glued together by the hot lamination part of the machine，than,Then fold the kraft paper bubble film or the coextrusion bubble film in half ，Then cut into standard bubble envelope bag after hot pressing。This machine adopts advanced machine, electricity, gas, spray glue integrated control technology，It is controlled by computer from sheet to cut，The bag produced is flat and beautiful, solid and reliable, easy to understand and easy to understand，it is a high quality special bag equipment.
Model | 800# |
Suitable material |
Laminating Kraft paper(85-140g)+air bubble film(25-150g), tape |
Material requirements |
With PE or PP film on surface of kraft paper |
MAX. feeding diameter | paper Φ600mm, bubble film Φ1200mm |
MAX. feeding width | paper≤ 1500mm , bubble film ≤1500mm |
MAX. bag size | ≤750mm(including the tongue of bag) |
Maximum bag width | ≤550mm |
speed of bag making | 30-90pcs/min（double speed of small lbag ） |
Total power | 30KW |
Voltage | 3phase AC380V 50Hz |
Machine size(LxWxH) | 18500×2100×2000 mm（L×W×H） |
